Metal Working Tools

Box & Pan Folders

Model WH06-1.5 x 1300 WH06-2.5 x 2550
Max Thickness 1.5 mm 2.5 mm
Max Width 1250 mm 2550 mm
Bending Angle 0 - 135 degrees 0 - 135 degrees
Dimensions 1620 x 690 x 450 mm 3070 x 940 x 620 mm
Weight 260 kg 50 kg

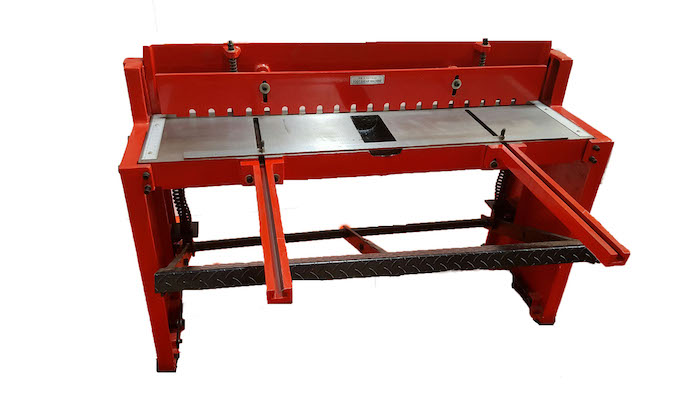

Guillotines

Model FS-1636 FS-1652 Q11-3*1300
Cutting Capacity 1.6 mm 1.6 mm 3.0 mm
Cutting Length 900 mm 1270 mm 1300 mm
Back Stop Length 630 mm 630 mm 350 mm
Front Stop Length 330 mm 330 mm 920 mm
Motor Power MANUAL MANUAL 2.2 Kw
Dimensions 1162 x 533 x 1000 mm 1550 x 533 x 1000 mm 1980 x 1505 x 1245 mm
Weight 370 kg 460 kg 1380 kg

Lathes

Model T400/1000 CD6250C/1500 CD6260C/2000 CH6266C/3000
Distance Between Centers 1000 mm 1500 mm 2000 mm 3000 mm
Max Swing Over Bed 400 mm 500 mm 600 mm 660 mm
Max Swing Over Saddle 264 mm 330 mm 360 mm 420 mm
Max Swing in The Gap 550 mm 660 mm 730 mm 870 mm
Effective Lenth of Gap 235 mm 260 mm 260 mm 260 mm
Spindle Bore 52 mm 52 mm 80 mm 105 mm
Range of Spindle Speed 44 - 2000 RPM 40 - 1600 RPM 24 - 1600 RPM 24 - 1600 RPM
Max Travel Over Cross Slide 180 mm 222 mm 305 mm 305 mm
Metric Threads 0.8 - 14 mm 0.25 - 14 mm 1 - 14 mm 1 - 14 mm
Max Travel Over Top Slide 75 mm 95 mm 130 mm 130 mm
Tool Bit Holder 20 x 20 mm 20 x 20 mm 25 x 25 mm 25 x 25 mm
Tail Stock Taper MT4 MT4 MT5 MT5
Tail Stock Travel 120 mm 120 mm 120 mm 120 mm
Motor Power 1.5/2.4 Kw 5.5 Kw 8 Kw 8 Kw
Net Weight 900 kg 1850 kg 2130 kg 3000 kg
Dimensions 1920 x 740 x 1200 mm 2970 x 1150 x 1590 mm 4330 x 1400 x 2000 mm 5310 x 1400 x 2000 mm

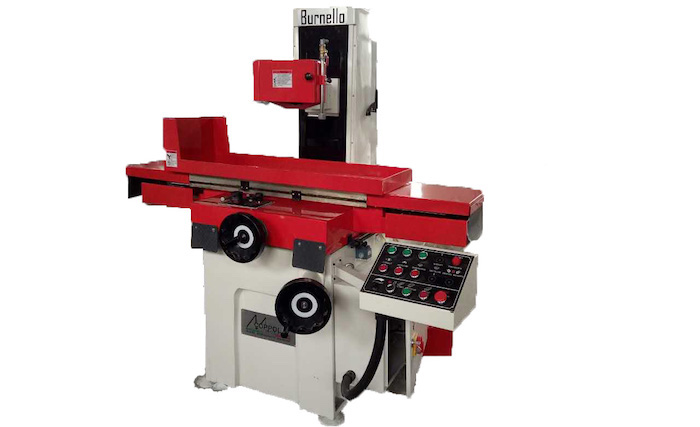

Surface Grinders

Model MJ-7115 MY-250
Table Size 304 x 152 mm 540 x 250 mm
Grinding Wheel 180 x 32 x 13 mm 200 x 20 x 31.75 mm
Grinding Height 210 mm 450 mm
Longitudinal Stroke 340 mm 560 mm
Lateral Stroke 170 mm 260 mm
Hydraulic Motor N/A 1.5 Kw
Weight 210 kg 900 kg

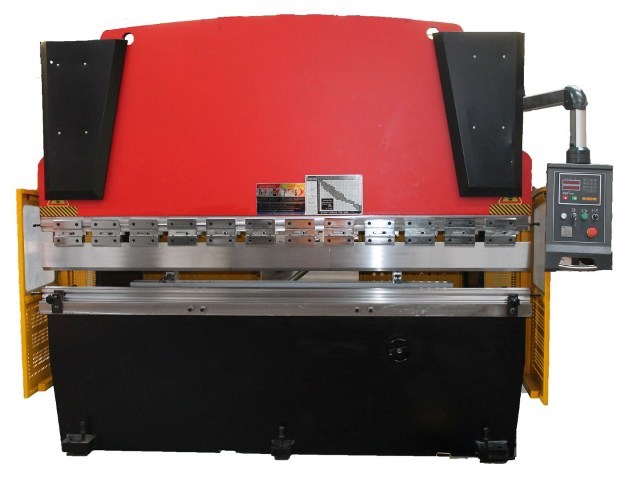

Press Brakes

Model WC67Y-63/3200 WC67Y-125/3200 WC67Y-160/3200 WC67Y-250/3200 WC67Y-400/4000
Norminal Pressure 630 KN 1250 KN 1600 KN 2500 KN 4000 KN
Worktable Length 3200 mm 3200 mm 3200 mm 3200 mm 4000 mm
Column Distance 2600 mm 2600 mm 2600 mm 2600 mm 3200 mm
Throat Depth 250 mm 320 mm 320 mm 320 mm 400 mm
Opening Height 350 mm 380 mm 420 mm 520 mm 615 mm
Slide Stroke 120 mm 120 mm 155 mm 250 mm 320 mm
Weight 5200 kg 7000 kg 9200 kg 11900 kg 25000 kg
Dimensions 3600 x 1500 x 2450 mm 3600 x 1500 x 2450 mm 3700 x 1570 x 2550 mm 3300 x 1800 x 2830 mm 4600 x 2250 x 3400 mm

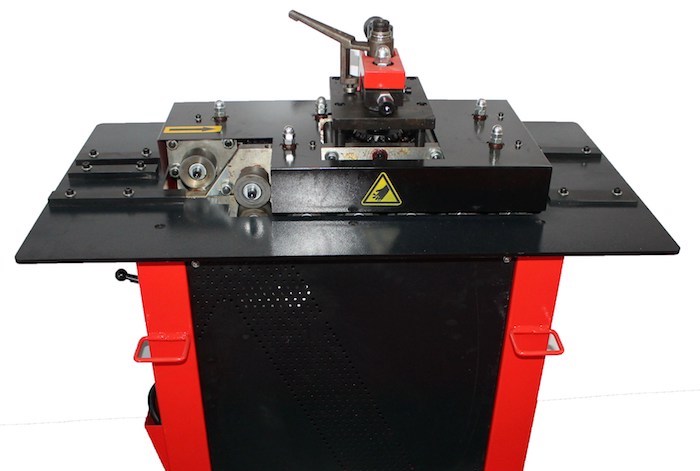

Lock Formers

Model LC-12 R LC-12 D LC-15 D R10 R15
Speed 6 m/min 6 m/min 7.6m/min 5 m/min 7 m/min
Capacity 0.5-1.2 mm 0.5-1.2 mm 0.7-1.7 mm 0.5-1.0 mm 0.7-1.5 mm
Power 1.5 Kw 1.5 Kw 1.5 Kw 1.1 Kw 1.1 Kw
Table Height 760 mm 760 mm 900 mm 800 mm 800 mm
Shape D Axes 7 7 7 1 1
Rollers 2 3 3 1 1
Weight 235 kg 230 kg 290 kg 135 kg 155 kg
Dimensions 1040 x 570 x 1050 mm 1045 x 570 x 880 mm 1140 x 600 x 1000 mm 670 x 600 x 900 mm 670 x 600 x 900 mm

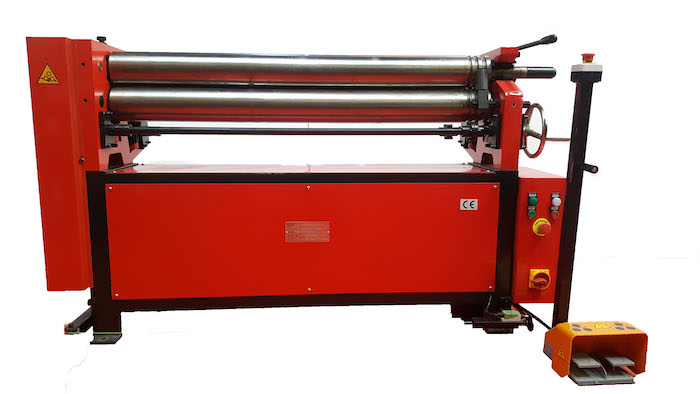

Slip Rolls

Model W01-2.0 x 1250 ESR-4.5 x 1300
Max Thickness 2.0 mm 4.5 mm
Max Width 1250 mm 1300 mm
Roll Diameter 60 mm 120 mm
Motor Manual 2.2 Kw
Weight 200 kg 750 kg
Dimensions 1800 x 620 x 1180 mm 2000 x 760 x 1270 mm

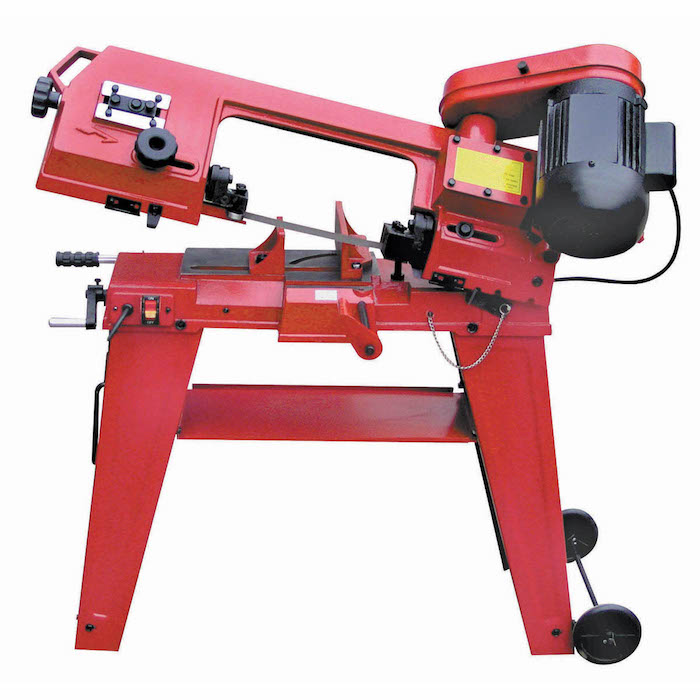

Bandsaws

Model BS712N CS280 G4235 G4240/60
Max Cutting Diameter 178 mm 280 mm 300 mm 400 mm
Max Cutting 178 x 305 mm 300 x 220 mm 350 x 350 mm 500 x 400 mm
Cutting Speed 22-64 m/min 20-90 m/min 25-80 m/min 30-80 m/min
Clamping Manual Hydraulic Hydraulic Hydraulic
Blade Tension Manual Manual Manual Manual
Main Drive V-Belt Worm Wheel Worm Wheel Gear
Main Motor 1 HP 1.8 Kw 3 Kw 3 Kw
Weight 170 kg 1150 kg 1800 kg 2200 kg
Dimensions 1250 x 450 x 1150 mm 1510 x 830 x 1150 mm 1880 x 1050 x 1550 mm 2100 x 1050 x 1620 mm

Milling Machine

Model X6323V
Table Size 230 x 1070 mm
Longitudinal Travel 650 mm
Cross Travel 305 mm
Vertical Travel 400 mm
T-Slots & Size 3 x 16mm
Ram Travel 312 mm
Spindle to Table Distance 15-415 mm
Spindle Taper R8
Spindle Travel 27 mm
Spindle Speed 16 Steps 70-4200 rpm
Auto Quil Feed 3 steps
Spindle Motor 2.25 Kw/3 HP
Head Swivel 90 Degrees
Head Tilting 45 Degrees
Weight 1160 Kg
Dimensions 1400 x 1476 x 2030 mm

Drilling Machines

Model Z5025 Z5030 Z5045 Z5045C Z5040T
Drilling Capacity 25 mm 30 mm 45 mm 45 mm 40 mm
Morse Taper MT-3 MT-3 MT-4 MT-4 MT-4
Spindle Travel 130 mm 130 mm 130 mm 130 mm 180 mm
Spindle Speed 80-1200 rpm 80-1250 rpm 80-1250 rpm 80-1250 rpm 50-1450 rpm
Column Diameter 100 mm 130 mm 130 mm 130 mm 240 mm
Motor Power 1.1 Kw 1.5 Kw 1.5 Kw 1.5 Kw 0.75/1.5 Kw
Weight 250 kg 430 kg 430 kg 460 kg 465 kg
Dimensions 1000 x 630 x 830 mm 1850 x 750 x 1000 mm 1850 x 750 x 1000 mm 1850 x 950 x 1000 mm 270 x 690 x 1100 mm
